Most students try to memorize hydraulic and pneumatic circuit diagrams instead of understanding the underlying physics — Pascal's Law, flow rate, and pressure drop. That's why circuit troubleshooting feels impossible on exams and in the workshop.

Here's the fix: before you touch a schematic, be able to answer three questions for any component —

1. What force/pressure is going in?

2. What is it converting (pressure → mechanical force, or vice versa)?

3. What happens downstream if this component fails?

If you can answer those for a pump, a DCV, and a cylinder, reading a full circuit becomes pattern recognition instead of memorization.

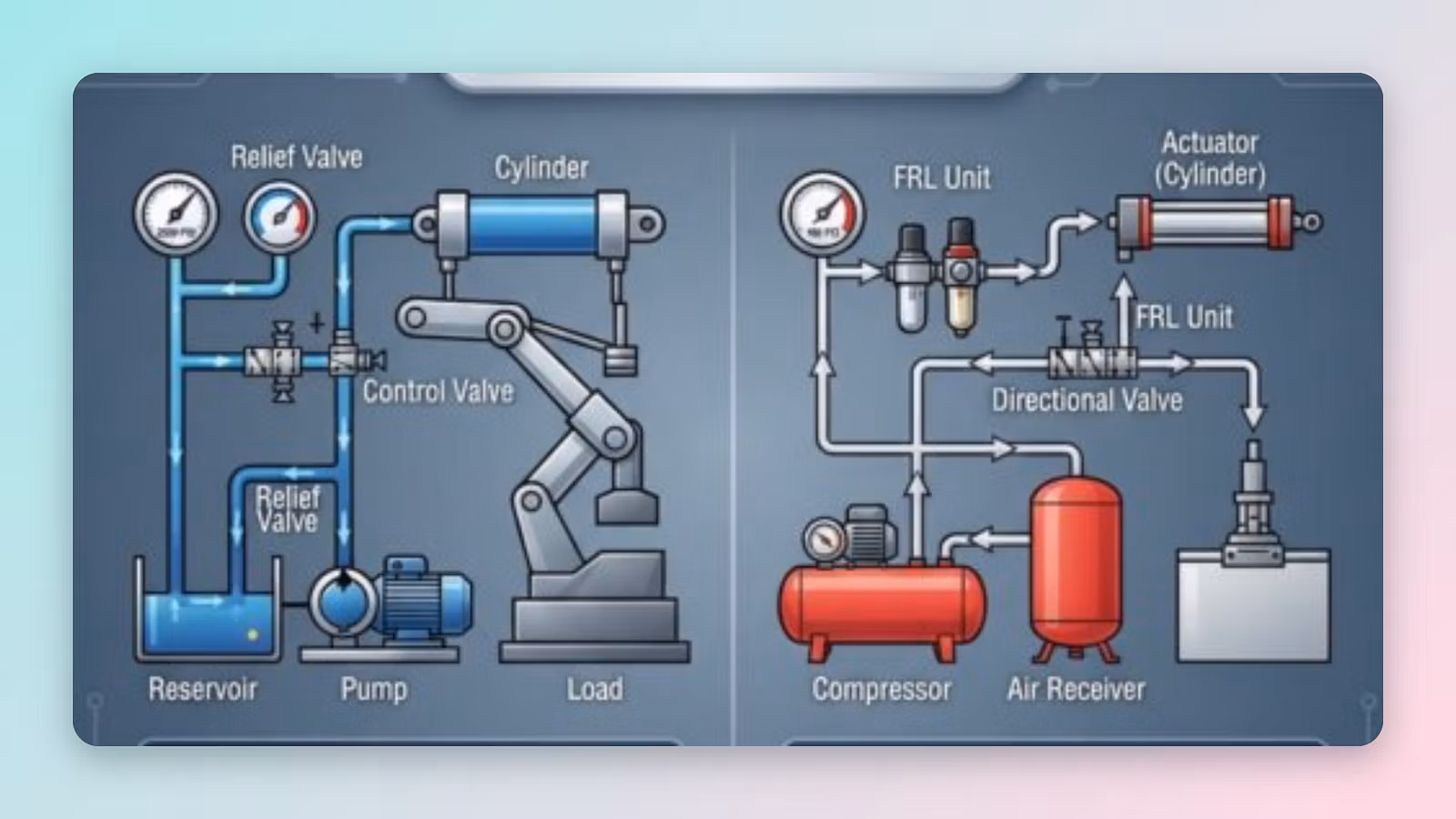

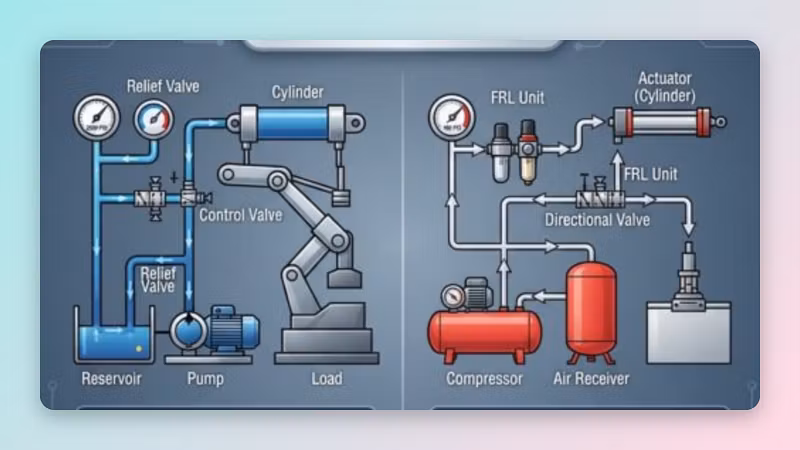

We just launched Fluid Power Fundamentals: Hydraulics & Pneumatics for Diploma Engineers — a structured, diploma-level course covering exactly this, from core principles through circuit design, troubleshooting, and a certificate exam. Built for engineering students who need a solid vocational-qualification foundation, fast.
